Target applications

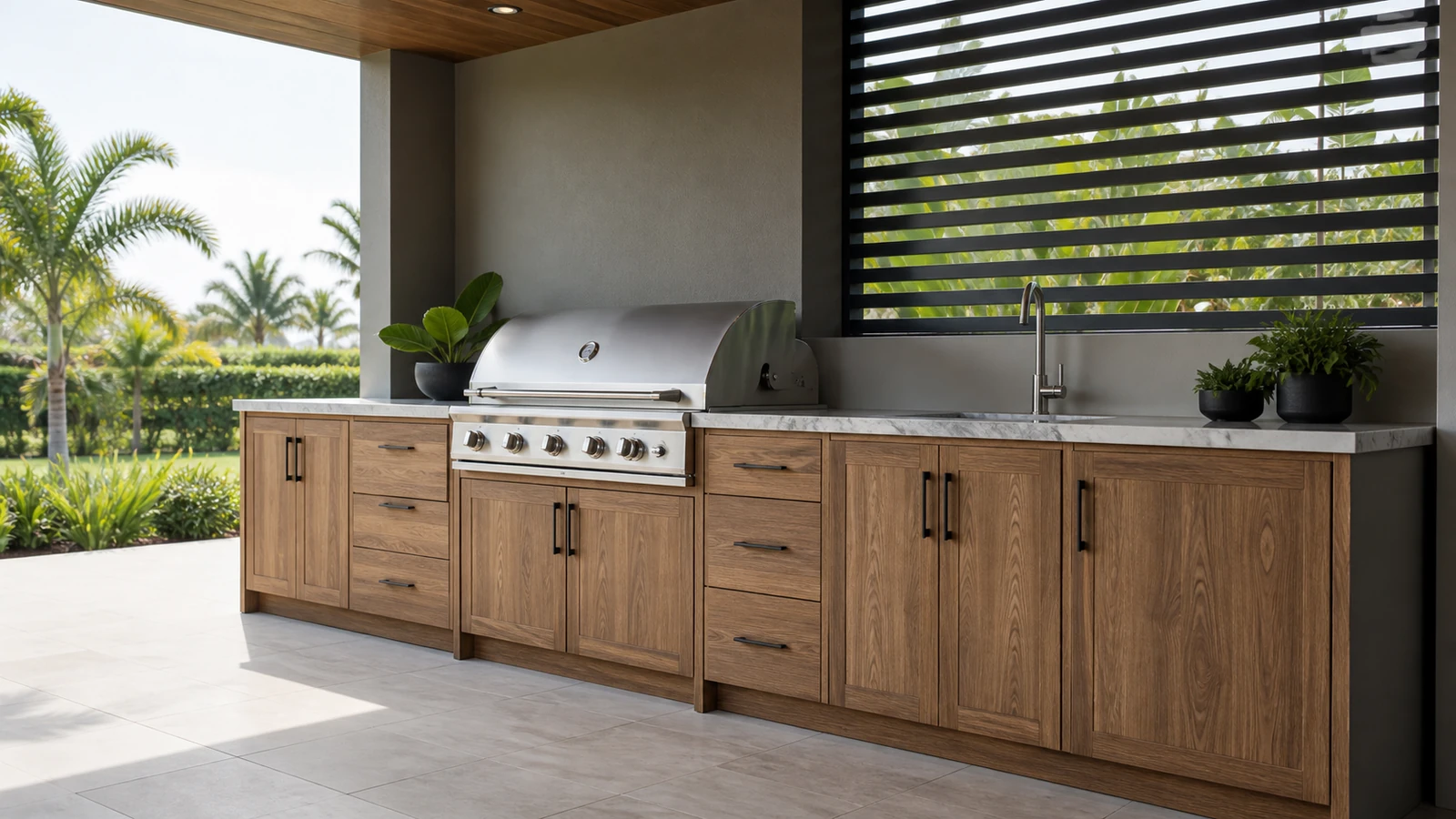

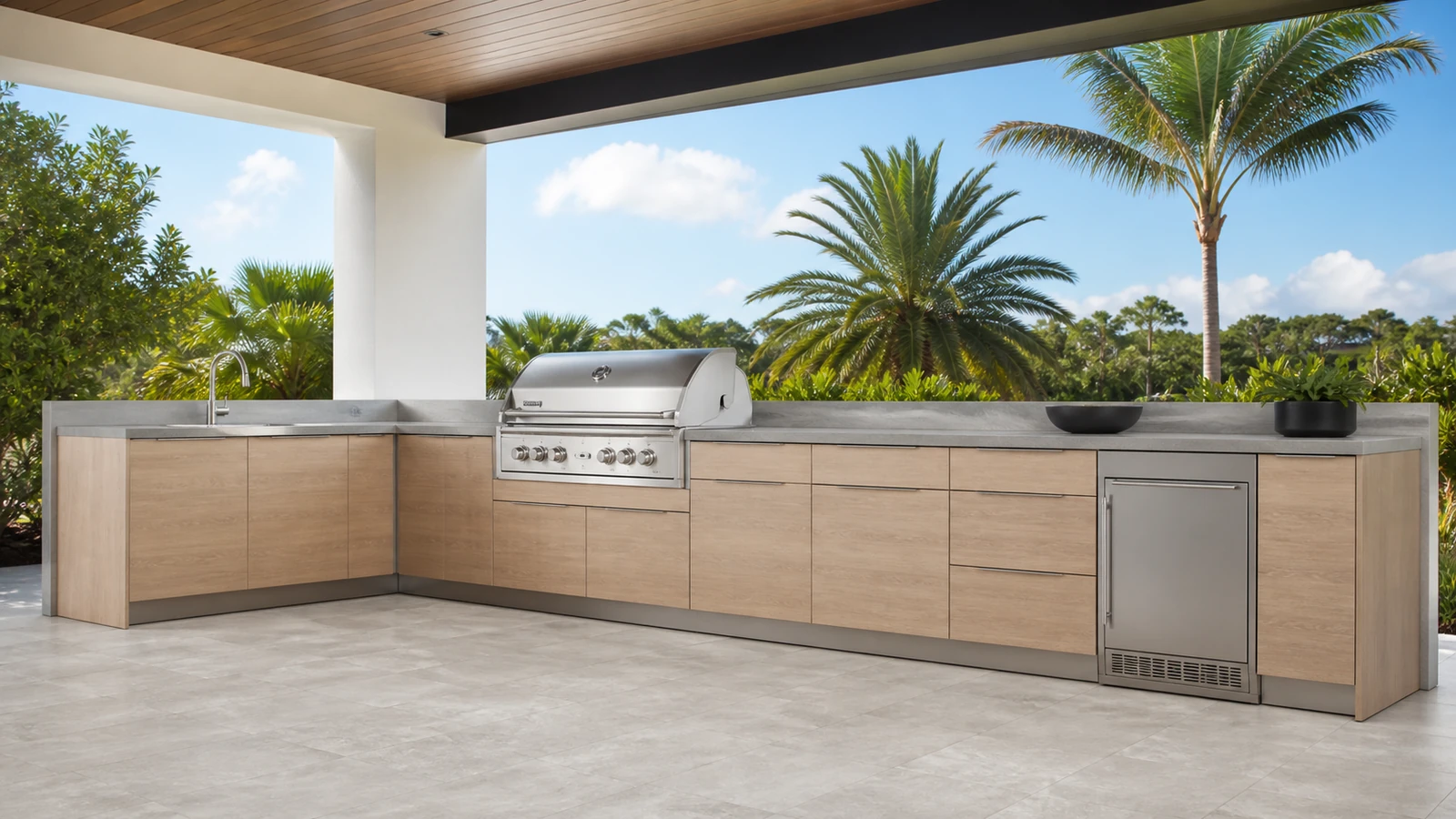

- Outdoor kitchen cabinets
- Covered patio and balcony storage
- Garden and poolside utility cabinets
- Exterior furniture components after project testing
A board, film, adhesive and edge system for exterior cabinetry
PVDF is used as the intended weather-facing surface family because PVDF materials are selected for outdoor UV and weathering resistance. Finished-board performance still depends on the selected film grade, surface preparation, PUR bond, edge sealing, machining and installation.
ApplicationOutdoor kitchen and cabinet evaluation
Reference sheet18 x 1220 x 2440 mm

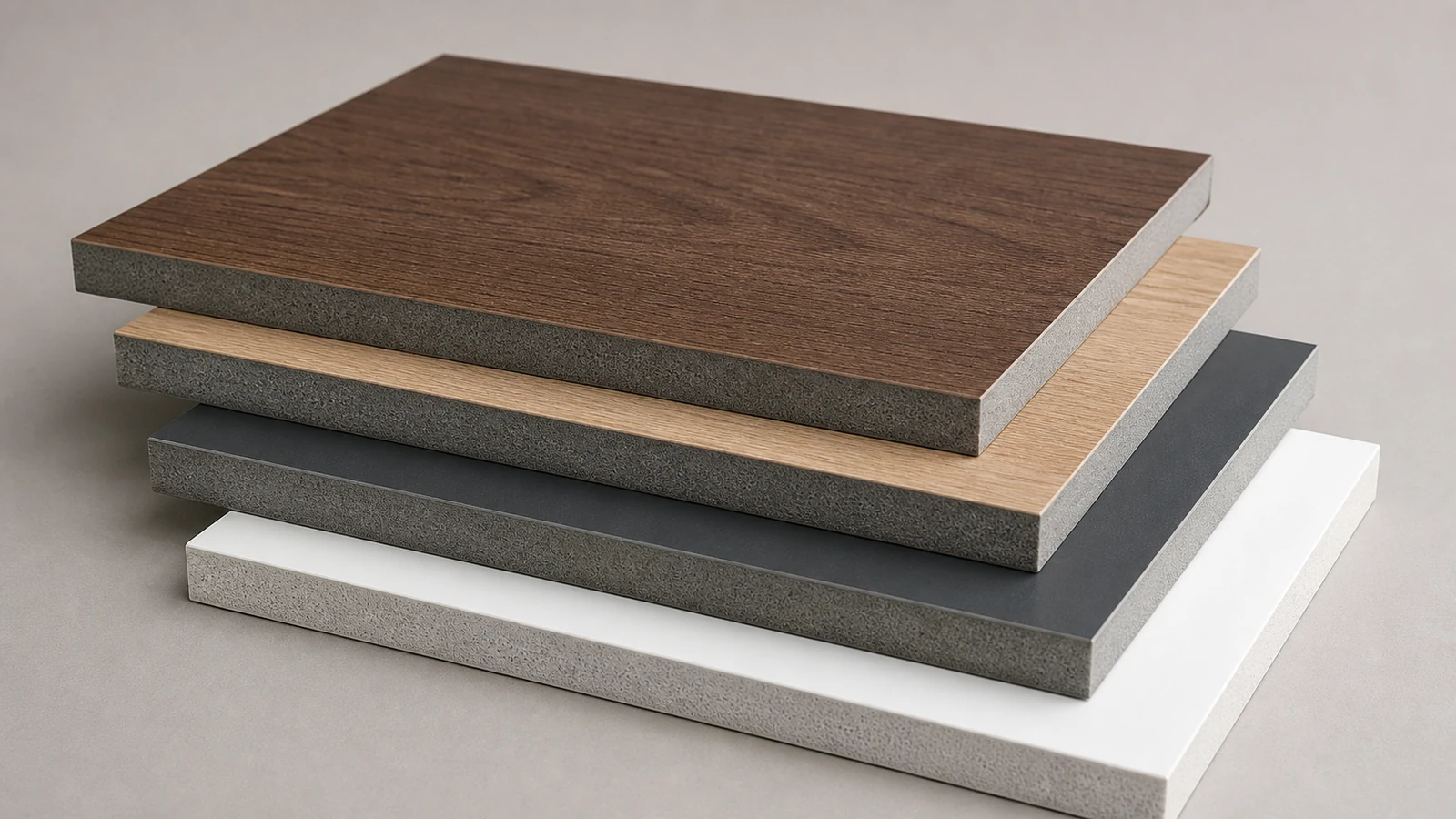

Density samples0.60 and 0.80 g/cm³ compared in the project sample plan
SurfacePVDF outdoor decorative film; color and grade to be approved
BondingPUR lamination
Edge treatmentMatched exterior edge treatment; project reference 1 x 22 mm
Acceptance routeApproved sample plus agreed full-system testing
These values document an evaluated buyer requirement, not a universal stock specification.
Buyer answer
System construction
- WPC/PVC composite structural furniture board
- PVDF outdoor decorative film on the specified faces
- PUR adhesive lamination; solvent-based bonding is not the project reference

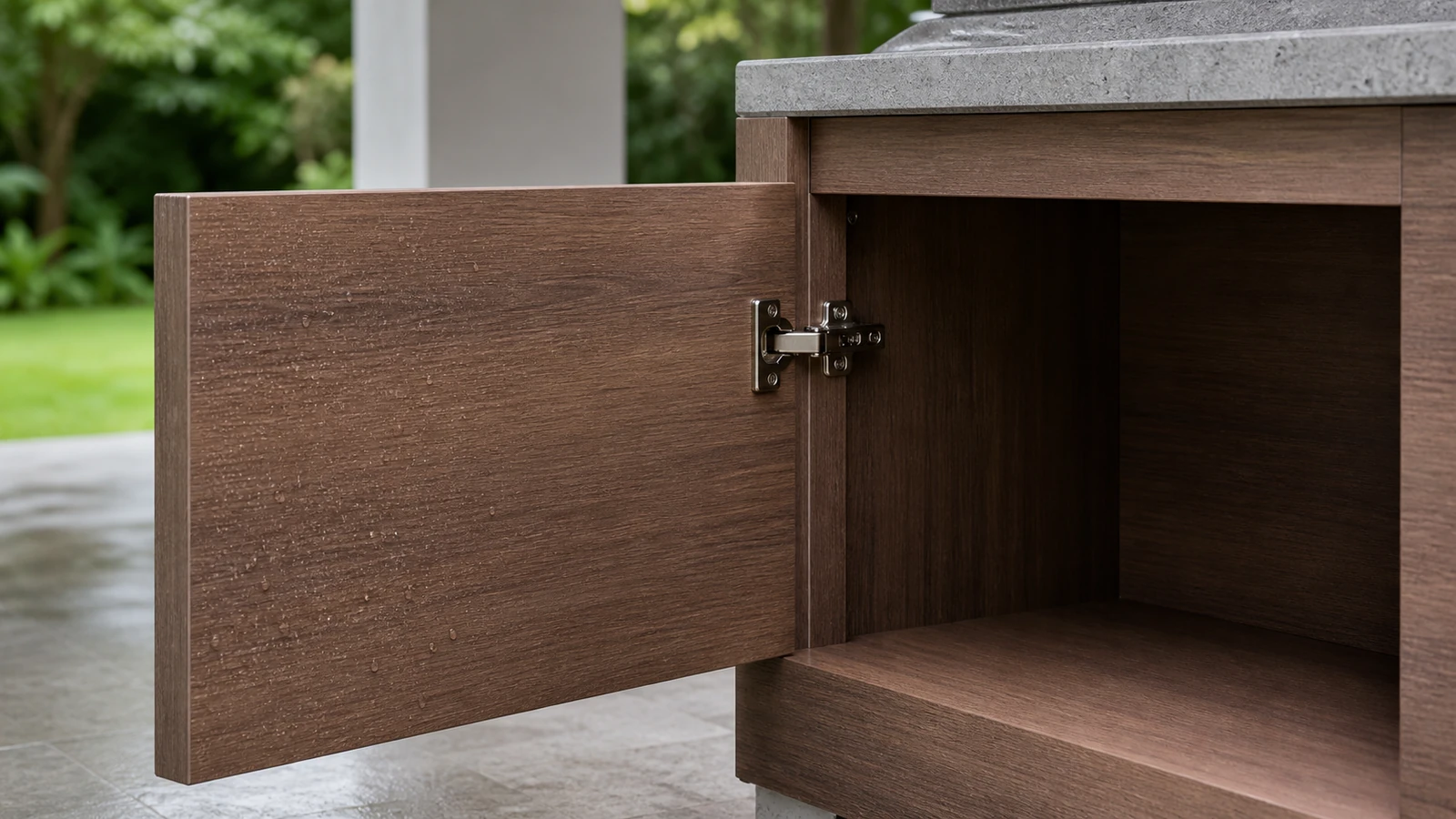

- Matched exterior edge treatment around exposed edges and cut-outs
Full-system evaluation
- UV and accelerated weathering / color retention
- Heat-moisture cycling, water exposure and dimensional stability
- Film peel, delamination and edge-bond performance
- Warping, cracking, swelling and screw-holding checks
PVDF + WPC
Product and application references
Performance and evidence boundary
This page describes a configurable product under outdoor-cabinet evaluation. It does not promise a service life, 100% waterproof performance, a warranty, a named certification or a test result. Request the current film TDS, board data, adhesive data and complete-system report for the approved sample before ordering.
RFQ
What to include in an RFQ
Send the application and climate, board size, density or mechanical target, film color and grade, exposed faces and edges, cabinet construction, hardware fixing, quantity, destination and required test method. JINYOU will confirm the manufacturable system and sample plan in writing.
FAQ
FAQ — PVDF Outdoor WPC Board
Is this already a certified outdoor WPC board?
No. It is a configurable system for outdoor evaluation. Certification, warranty and performance claims require the approved construction and applicable test evidence.
Why use a PVDF film on WPC board?
PVDF is selected as the weather-facing surface family for outdoor UV and weathering resistance. The film alone does not qualify the finished cabinet; bonding, edges, cut-outs and installation must also be evaluated.
What dimensions and densities were discussed for the project?
The reference configuration is 18 x 1220 x 2440 mm. The sample plan compared 0.60 and 0.80 g/cm³ boards; final density depends on screw holding, stability, weight and test results.
Why test the complete finished system?
Outdoor failure can occur at the film bond, edge, screw fixing or cut-out even when one material performs well. Test the PVDF film, PUR adhesive, WPC board and edge treatment together.
Can JINYOU prepare outdoor cabinet samples?
Yes. Send the climate, cabinet drawing, film finish, board specification, edge detail and test plan so the applicable sample construction and cost can be confirmed.
PVDF + WPC
