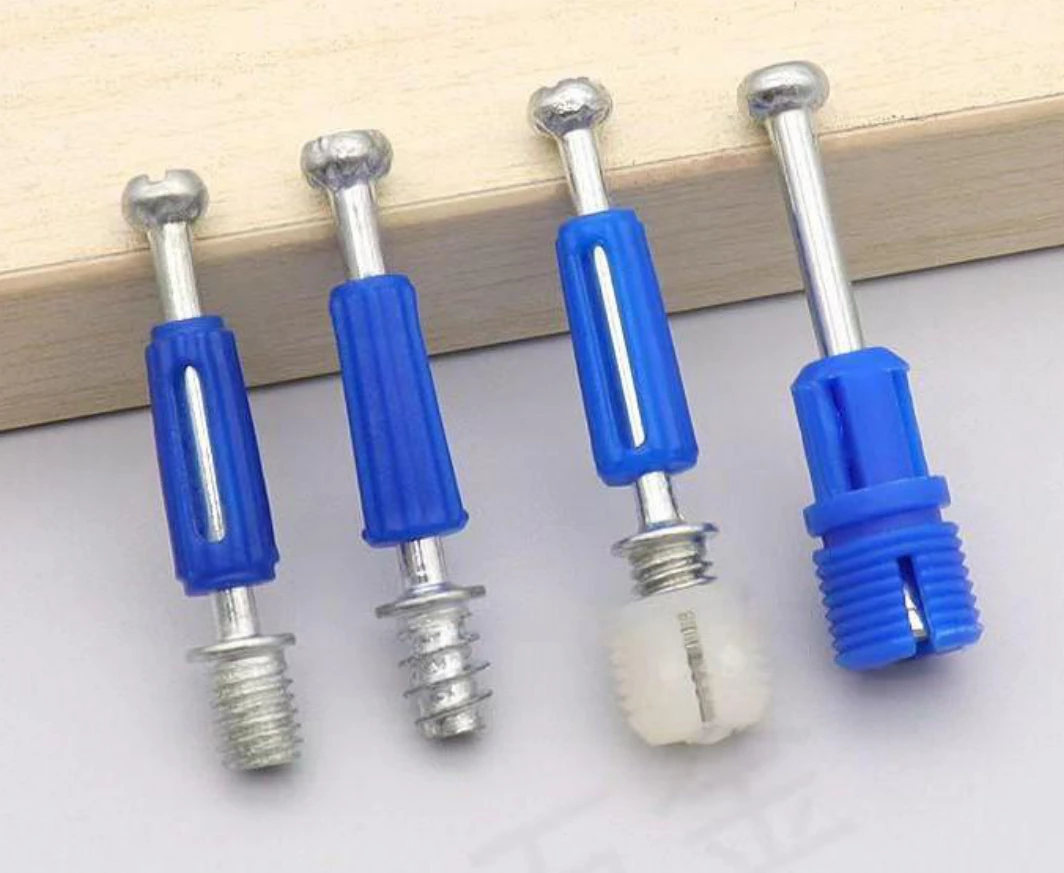

Cam locks and connecting bolts for knock-down cabinets, wardrobes and panel furniture. The catalog shows cam families for 10, 12 and 15 mm drilling, with several bolt and sleeve designs. Components must be selected as a compatible set.
English PDF · 16 pages · 12 selected families
The figures refer to cam drilling families, not board thickness. Confirm drilling depth, edge distance, bolt length and insert fit.
Download Hardware CatalogCam locks and connecting bolts for knock-down cabinets, wardrobes and panel furniture. The catalog shows cam families for 10, 12 and 15 mm drilling, with several bolt and sleeve designs. Components must be selected as a compatible set.
Confirm fit and finish on a sample before a bulk order. Request the applicable material, dimensional, load, cycle or corrosion test documents for the chosen model and destination. This selection catalog is not a test report or certification.
Send the inquiry reference, marked photo or drawing, dimensions, material or finish, quantity per item and destination. Include board thickness and mounting details where relevant. JINYOU confirms price, MOQ, packing and lead time for the selected items.
Request a QuoteYes. List each reference and quantity separately. Sales will check item availability, matching components, packing and shipment options; a mixed inquiry does not imply one common MOQ or immediate stock.
Push-to-open latches for handleless cabinet doors. The selection includes cylindrical plungers, surface-mounted housings and matching mounting plates. Match the latch to the door gap and hinge action before assembly.
Shelf fittings for removable cabinet shelves, including cam-style supports and straight metal pin assemblies. Straight-body references are shown in 6, 8 and 9 mm families; the cam fittings use their own drilling layout.
Plastic pull handles for cabinet doors and drawers. The selected black handle has a 96 mm fixing-center reference, while the decorative range includes several shapes and colors. Use a sample to match the furniture finish.
