Product identity, visible QC and dispatch control · August 2026

Five traceability and packing checks before mixed furniture-material export

A buyer-focused guide to connecting carton identity, protective packing, PVC film surface checks and zone-based loading.

Direct answer

Before mixed furniture materials are loaded, connect each product to a visible verification point. Scan sealed PVC edge-band cartons before pallet wrapping; protect PVC foam-board corners and surfaces; inspect decorative-film emboss, gloss and thickness under raking light; check small 20 kg PUR pail closures and leakage; then scan unlike cargo by dispatch zone before loading. The five scenes are AI-generated illustrations, not records of a live batch or shipment.

Visual disclosure: all five images are AI-generated process illustrations. They explain useful checkpoints but do not prove a specific factory process, inventory position, quality result or completed shipment.

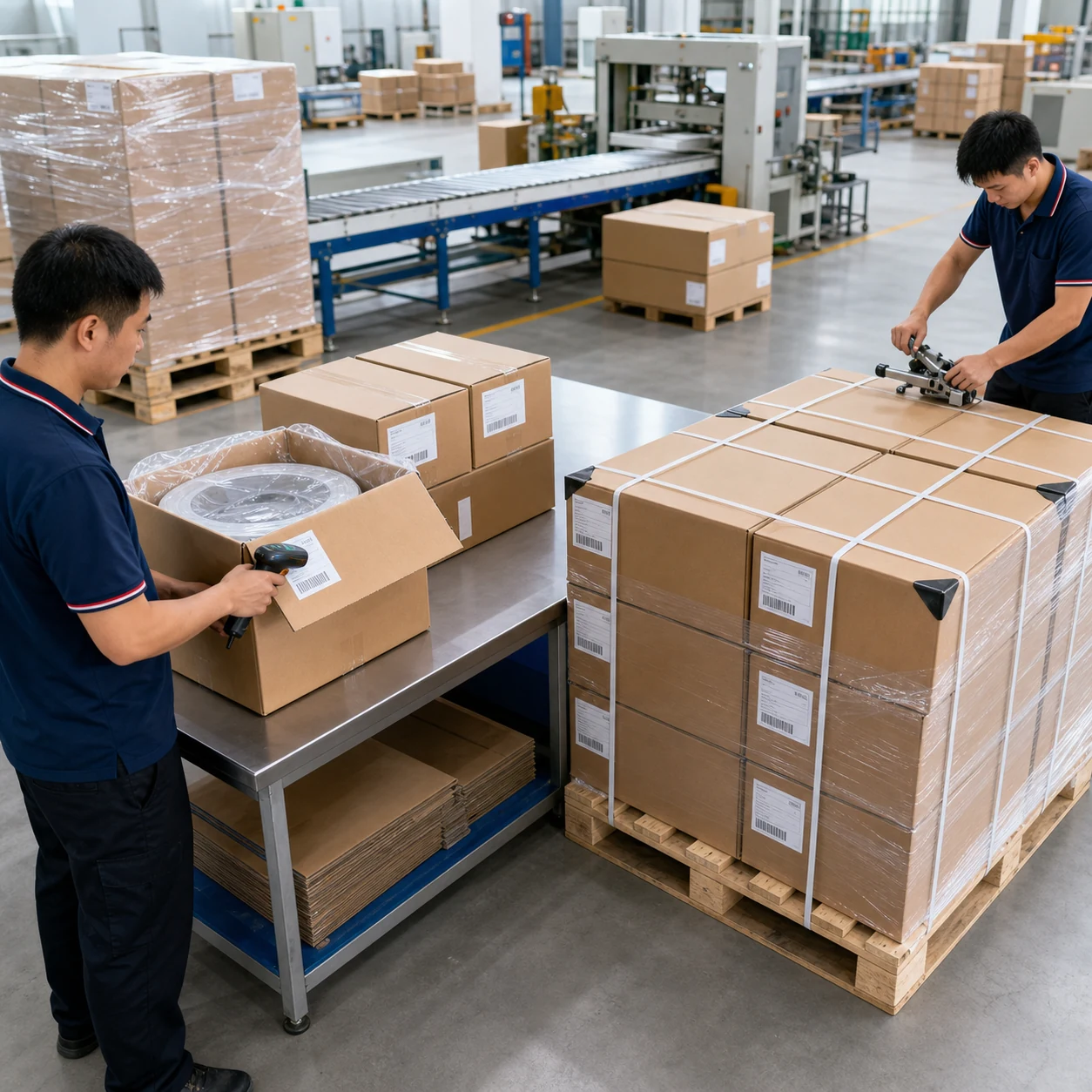

AI-generated PVC edge-band export packing with bagged coils in fitted cartons and barcode-style scanning
AI illustration: bagged edge-band coils, fitted cartons, code scanning, straps and pallet wrapping.
1 · PVC edge-band traceability

Connect the bagged coil, fitted carton and pallet record

PVC edge-banding coils should be individually bagged and placed in fitted cartons before export handling. Match each carton code to the packing list, confirm the seal, then review pallet alignment, strap tension, corner protection and stretch wrapping.

  • Confirm decor, width, thickness, roll format and quantity before packing.
  • Bag each coil and keep the carton fit controlled; bare coils are not export-ready cargo.
  • Reconcile carton codes, seals, strap tension and pallet wrapping before release.

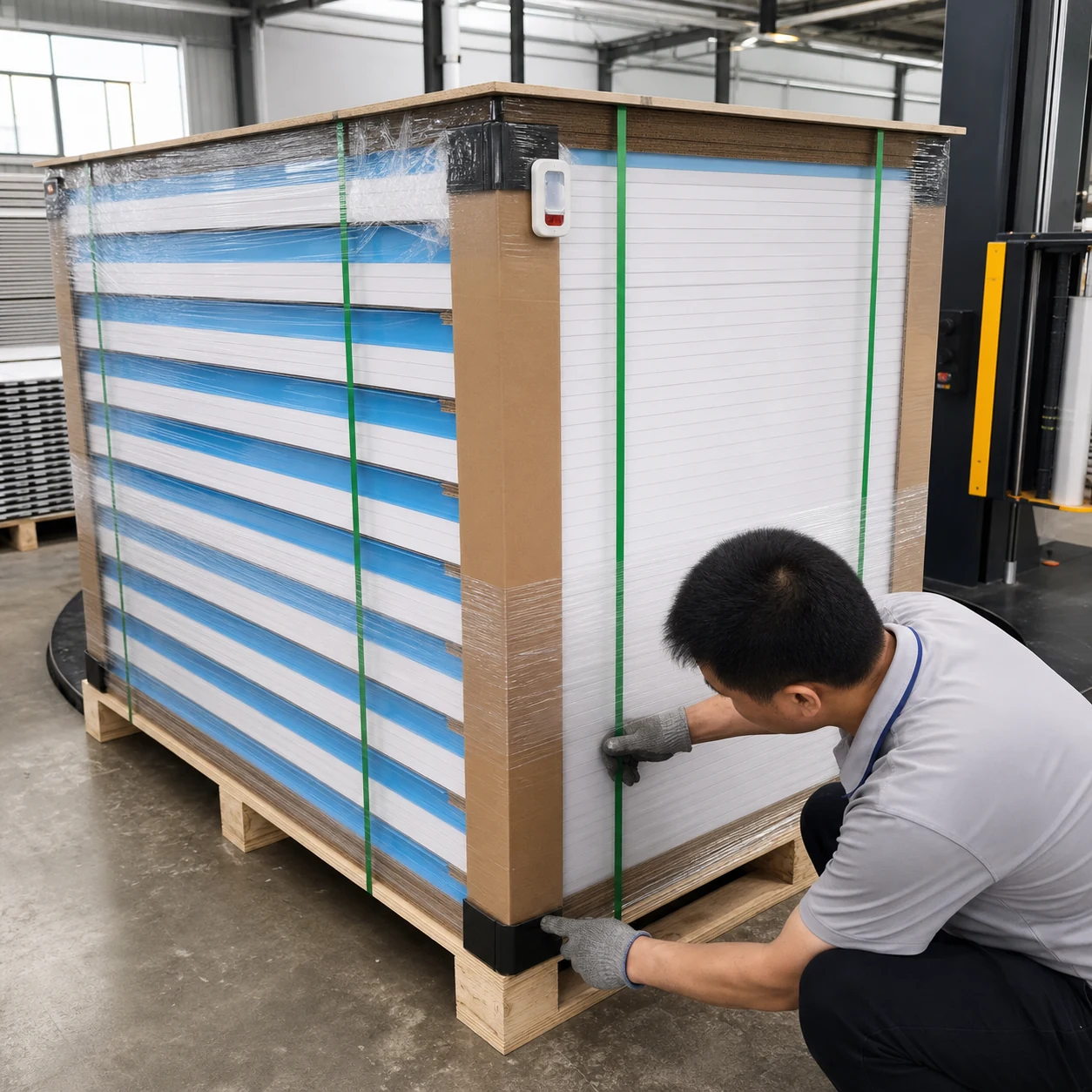

AI-generated PVC foam-board pallet with anti-slip layers, reinforced corners and an impact indicator
AI illustration: aligned foam-board sheets with layered, corner, impact and restraint checks.
2 · PVC foam-board protection

Protect corners before handling pressure reaches them

A level PVC foam-board pallet can still be vulnerable at its corners and lower edges. Anti-slip slip sheets help stabilize selected layers, while reinforced corner guards, a rigid top cap, straps and stretch film distribute handling pressure.

  • Confirm sheet dimensions, thickness, density or grade and protective-film requirement.
  • Inspect visible edges, corners, stack alignment and surface-film condition.
  • Review slip sheets, corner guards, impact reference, top cap, straps and forklift access.

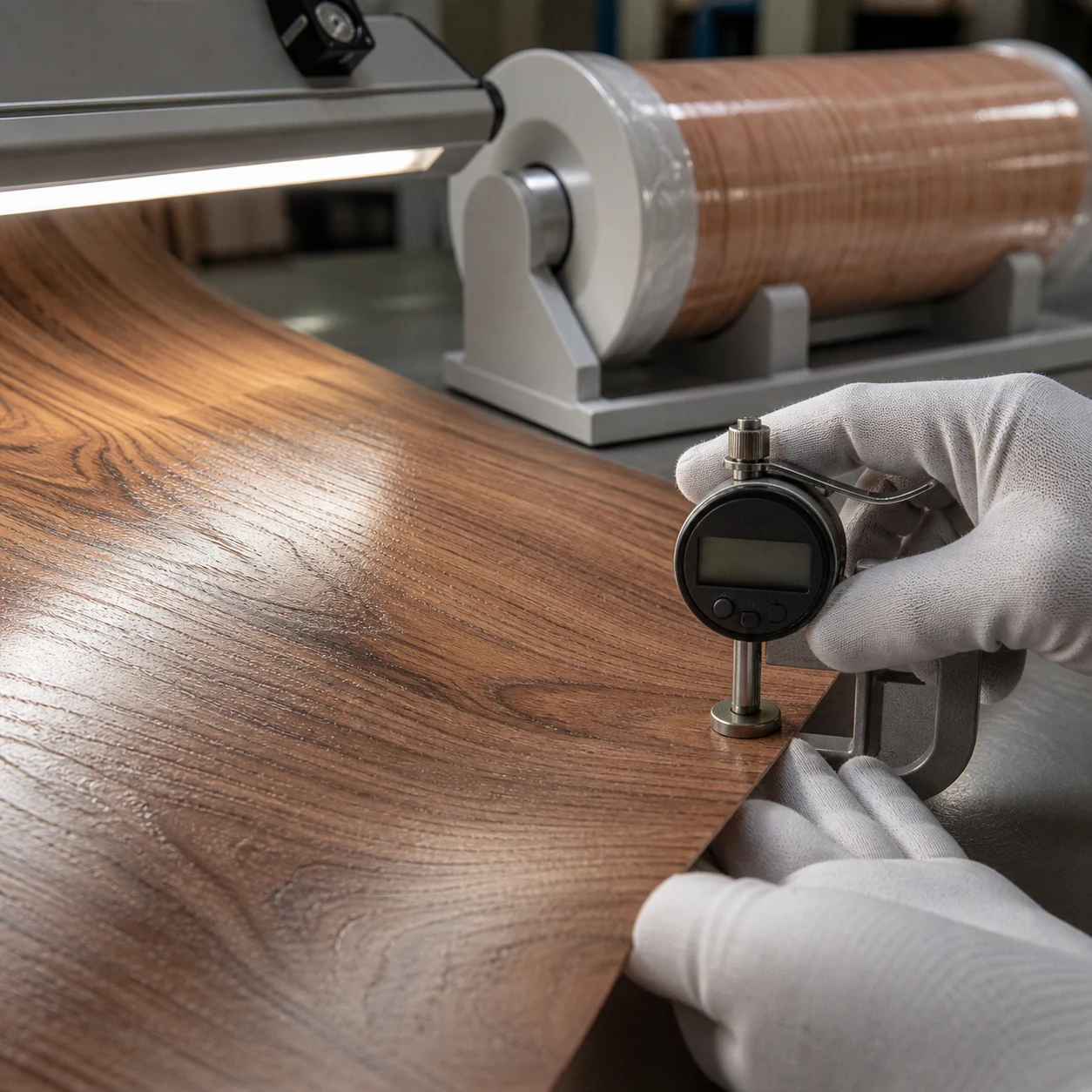

AI-generated PVC decorative-film raking-light inspection with emboss, gloss and thickness checks
AI illustration: PVC decorative-film surface and thickness checks before protected roll handling.
3 · PVC decorative-film QC

Use raking light to inspect emboss and gloss

Raking light can reveal changes in emboss definition, gloss and surface consistency that are less obvious under flat lighting. Thickness, width, decor reference, finish, winding condition and roll protection should then be reviewed together.

  • Match the decor, color tone, grain direction, emboss and finish to the approved reference.
  • Confirm width, thickness or gauge and visible surface consistency.
  • Inspect winding, roll ends, protective sleeve, rigid end caps and transport cradle.

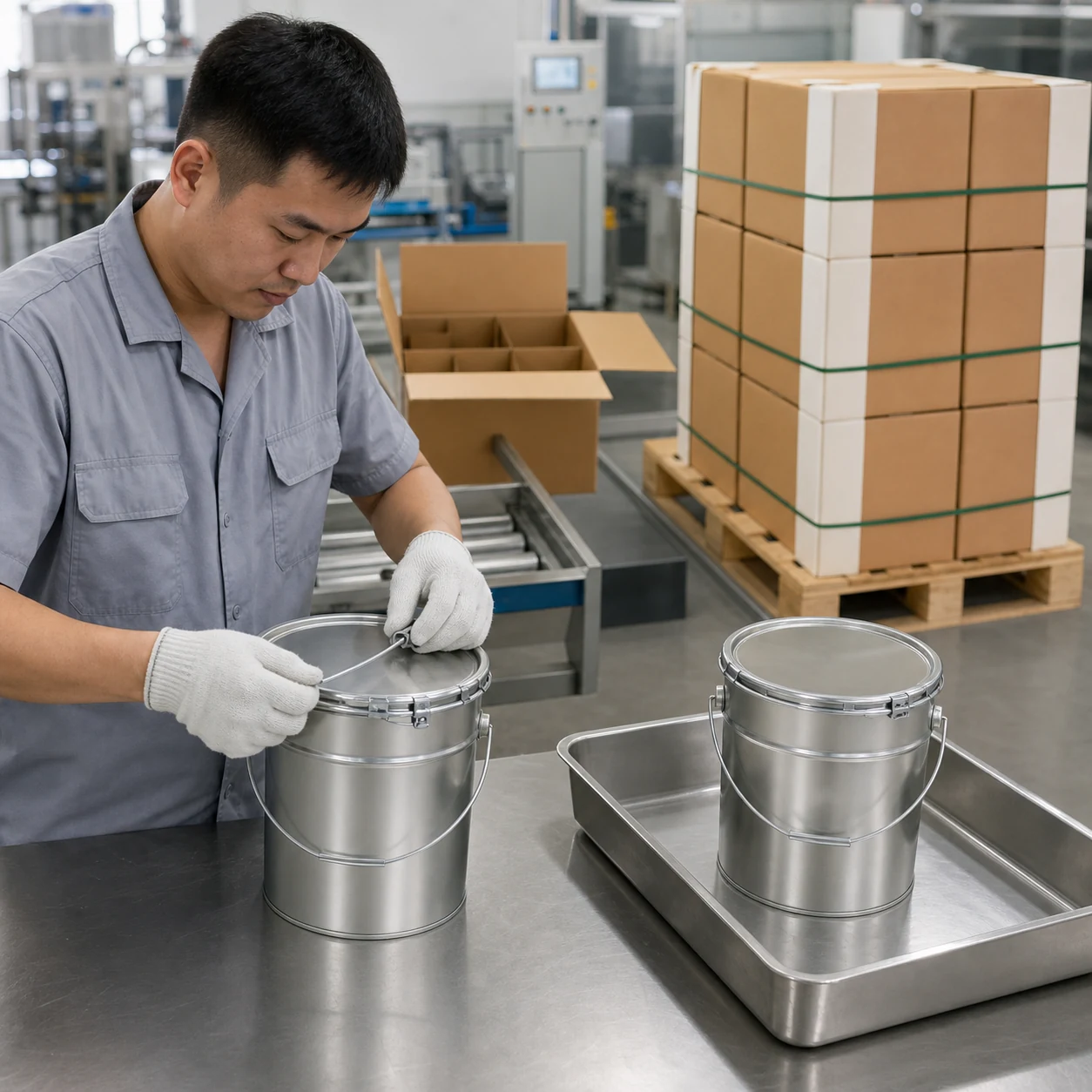

AI-generated small 20 kg PUR hot melt metal pails undergoing closure and leak inspection
AI illustration: small 20 kg PUR pails checked for closure, tamper condition, leakage and carton fit.
4 · PUR 20 kg pails

Check closure condition as well as net weight

For this supply format, PUR hot melt adhesive is shown in small 20 kg metal pails, not 200 kg drums. A useful packing check covers the locking ring, tamper seal, visible leakage, pail condition and fitted-carton support.

  • Confirm application, exact PUR grade, package format and current document requirements.
  • Check net weight, locking-ring fit, tamper condition, visible leakage and carton fit.
  • Review pallet alignment, corner protection, straps, wrap and storage instructions.

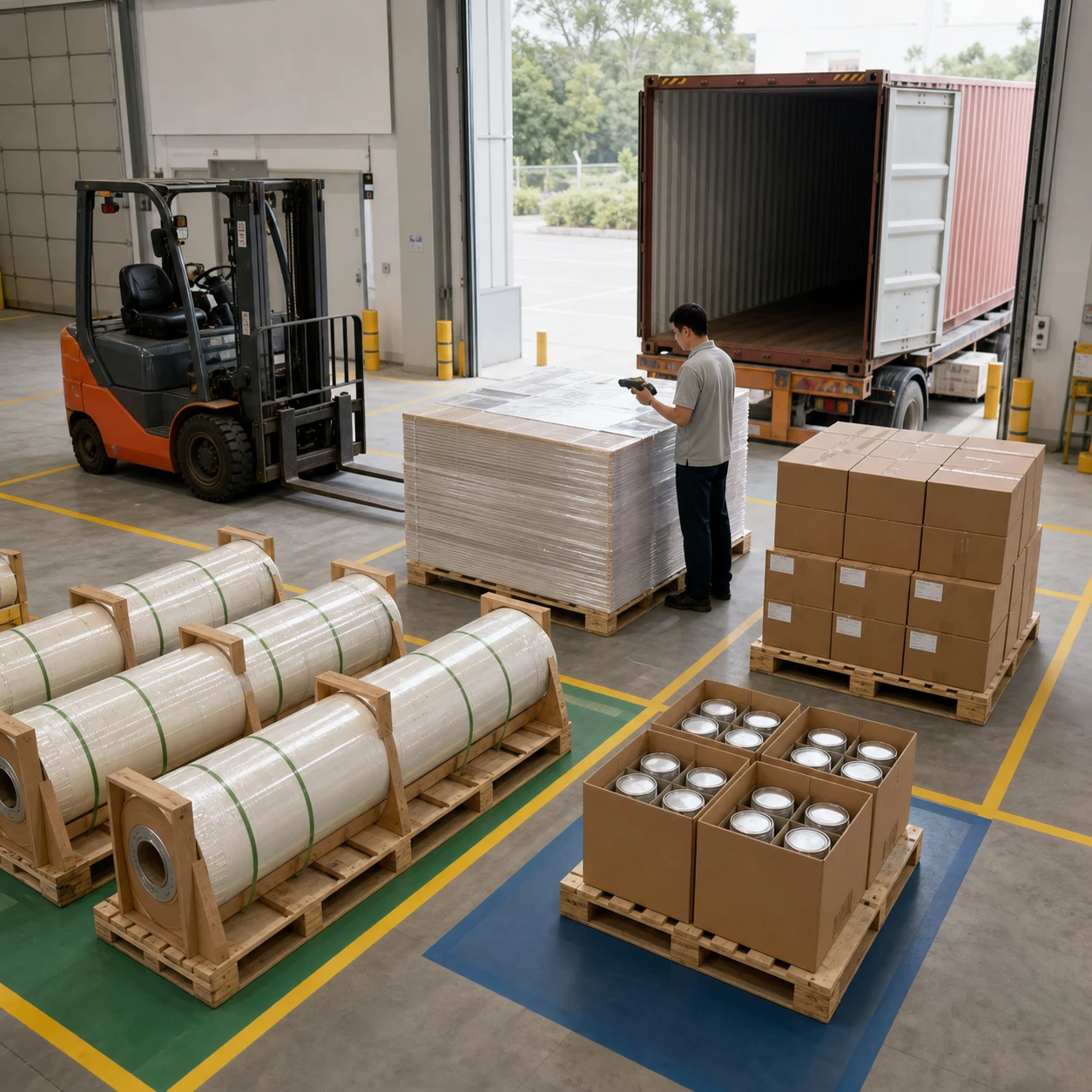

AI-generated dispatch zones with foam boards, edge-band cartons, protected PVC film rolls and PUR cartons
AI illustration: mixed furniture materials separated and scanned by dispatch zone before loading.
5 · Mixed dispatch scanning

Separate and scan cargo by zone before loading

Foam-board pallets, sealed edge-band cartons, protected PVC-film rolls and cartonized 20 kg PUR pails create different pressure and handling risks. Separate them in visible dispatch zones, reconcile quantities and scan units before loading.

  • Confirm cargo dimensions, pallet footprints, gross weights and stacking limits.
  • Separate rigid pallets, pressure-sensitive cartons, protected film rolls and cartonized pails.
  • Reconcile final counts, loading sequence, restraint points and packing-list details.
RFQ

Nine details that make the export review useful

A practical request connects the product specification to the exact packing unit, evidence and destination requirements.

  1. Product and intended application
  2. Dimensions, thickness or film gauge
  3. Color, decor, finish or approved reference
  4. Roll, sheet, pail or carton format
  5. Quantity and order mix
  6. Visible quality checkpoints and tolerances
  7. Packing unit, shipping marks and handling limits
  8. Destination and Incoterm
  9. Required TDS, SDS, QC or pre-shipment evidence
FAQ

Traceability, PVC film and export-packing FAQ

What should carton traceability connect?

It should connect the product specification, bagged coil or packed unit, fitted carton identity, packing list and final pallet record.

Why use raking light on PVC decorative film?

Low-angle light can make emboss, gloss and surface-consistency differences easier to see before winding and protective packing are completed.

Is every PUR adhesive supplied in a 20 kg metal pail?

No. The 20 kg metal pail is a project packaging option. Confirm the current grade, net weight, container specification and documents before ordering.

Do the images prove a factory process or shipment?

No. They are AI-generated illustrations. Ask for current order-specific QC, packing and loading evidence tied to the purchase order.
