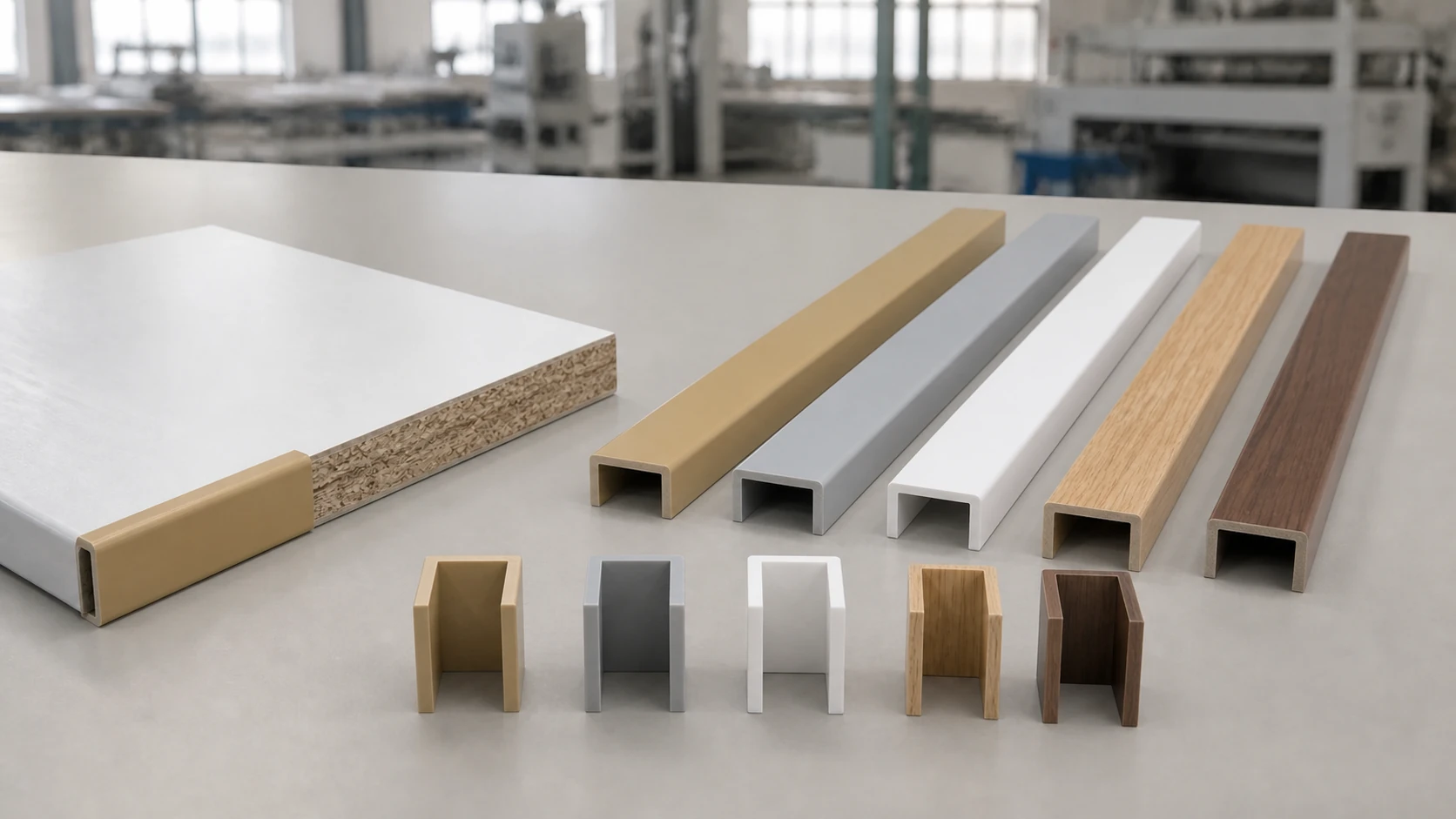

JINYOU supplies straight, rigid PVC U-channel edge trim that snaps over a panel edge. It has a plain U-shaped cross-section with two straight parallel legs and square-cut open ends: no chamfer, bevel, flare, return lip or hook. It is supplied in sticks, not rolls. The 16 mm and 17 mm references below are verified project examples; final fit, wall thickness, leg length, finish, stick length and packing are confirmed against the buyer’s sample and order.
A plain rigid U-shaped PVC channel covers both faces and the exposed panel edge. Its two legs are straight and parallel, and both free ends are square-cut with no chamfer, bevel, flare, return lip or hook. Confirm the internal opening and closure fit against the actual board tolerance.
Solid colors, wood grain, high gloss, matte, texture, gold-look and silver-look decorative films can be submitted for matching.
Furniture panels, shelves, cabinet parts and other straight panel edges where a snap-on U profile is specified and sample-approved.
Send panel thickness and tolerance; internal opening; closure/fitting width; wall thickness; leg length; stick length; color or film sample; coverage requirement; quantity; packing; destination and labeling.
The 16 mm, 17 mm and 300-stick packing figures come from specific customer orders and are not universal catalog standards. Price, MOQ, available colors, stick length, packing count, lead time and container loading require written confirmation after the profile drawing and sample are approved.
No. It is a straight rigid PVC U-channel profile supplied in sticks and fitted over the panel edge.
No. Both legs are straight and parallel, and their free ends are square-cut. The profile has no chamfer, bevel, flare, return lip or hook.
These sizes have been produced for projects. Send the actual panel tolerance and required opening/closure dimensions so sales can confirm the drawing and sample.
Full film coverage can be requested. Film coverage, scratch resistance and appearance must be confirmed on an approved sample.
It is a verified project range, not a universal standard. Confirm the required wall thickness, stiffness and fit for the current order.
Straight cartons with an outer woven bag and 300 sticks per package were used in one project. Current packing depends on stick length, profile size, quantity and shipping plan.
